Buildings Out of Glass: Are Skyscrapers the Future of Modern Cities?

Definition

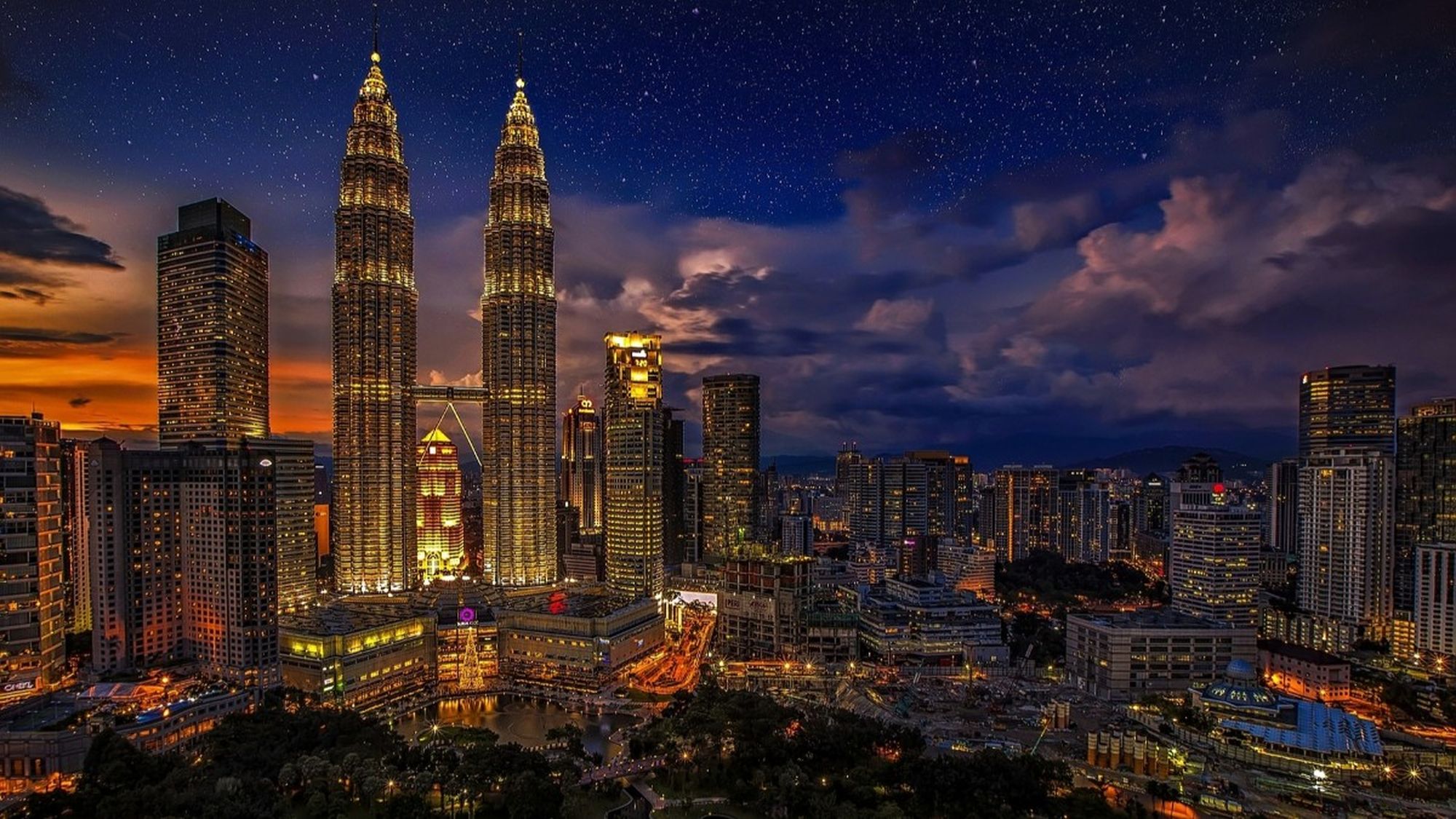

Can you imagine if I told you that your horse was quite the skyscraper, that is exactly what they were saying in 1780s about large horses. Skyscrapers are fascinating feats of engineering and architecture, that’s for sure. They are extremely tall high-rise buildings. The advances in the manufacturing, engineering and even elevator technology made these tall skyscrapers possible. Today, a skyscraper is considered a building that is over 40 floors… Or 150 m (492 feet). It is called a “supertall” skyscraper if they are 300 m or taller (984 feet), like the Petronas Twin Towers (452 m) in Malaysia and the One World Trade Center (541 m) in the United States.

A few even meet the requirements to be “megatall” as they are 600 m or taller (1969 feet)! The tallest skyscraper naturally topping the “megatall” category is the Burj Khalifa in Dubai, United Arab Emirates that stands at an astounding 828 m and 163 floors (2717 feet)! Almost a kilometer long!

Raven

Windows

But have you noticed one thing? The outer walls of a skyscraper are very different from the ones in a standard house. Most skyscrapers will have a ton of windows in the exterior walls! Isn’t that crazy that this huge building is filled with a material as weak as glass? This window design is not practical in most houses because walls in your home almost always play a role in keeping the rest of the house standing. When a wall is structurally crucial, then it is called a load bearing wall.

Wikipedia

Glass is obviously not a load-bearing building material like brick or concrete. So, how are so many windows possible in huge skyscrapers and not practical in a simple house? Well, the exterior walls of skyscrapers are not designed to be load bearing walls, instead they have what are called “curtain walls”.

These curtain walls allow the skyscraper to be beautiful and eye-catching. And also more economical… Glass is cheaper, and it is lighter to haul into the air during the building process than other materials. Further, when you design huge buildings you want as much light to reach the inner parts of the building to cut down on lighting costs and make the occupants feel less like they are in a dark cave.

Wikipedia

Light

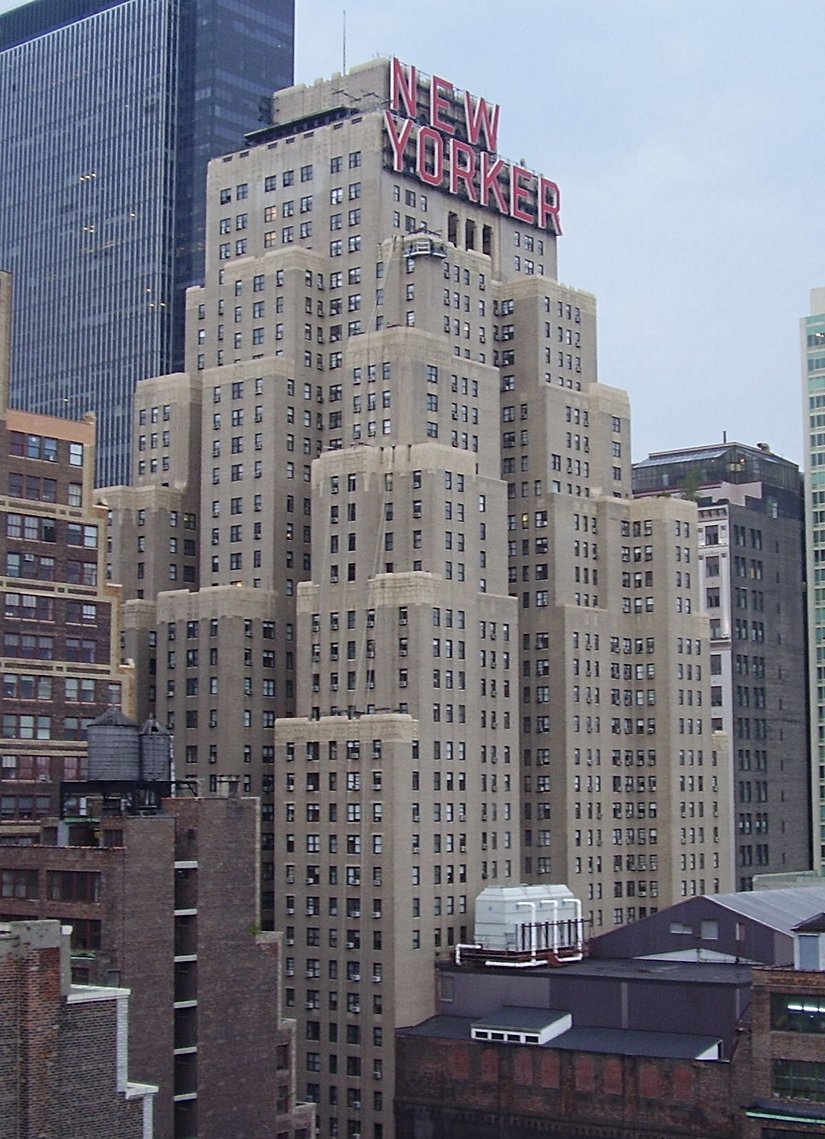

Speaking of light… Another feature you will often see in Skyscrapers are setbacks, where the building has a “break” or “step” such as the famous Wyndham New Yorker Hotel where Nikola Tesla stayed. These setbacks have been used since ancient times to help with structural integrity by lowering the center mass of a structure like the Pyramid of Djoser. Actually, one of the theories about how the Great Pyramids of Giza were built relies on this design feature, the builder built these setbacks and then kept adding on it. Today, they are also used for aesthetics, as well as light.

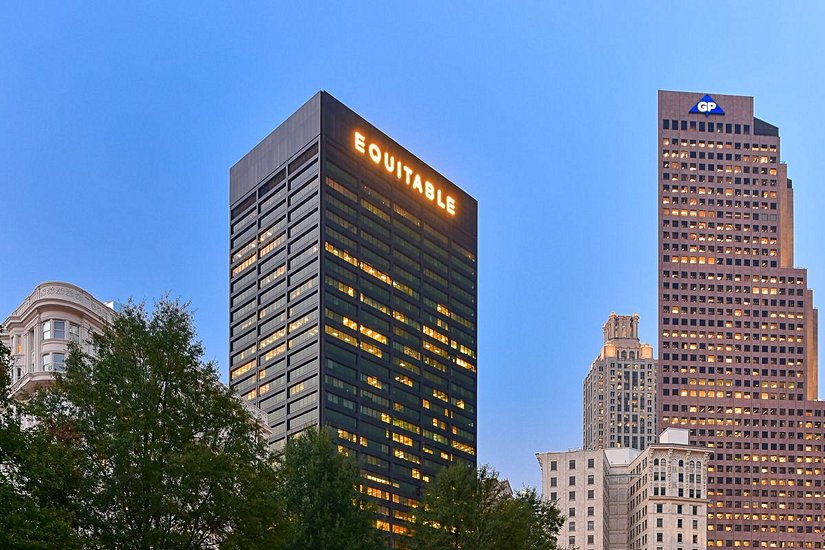

You know how the Sun can cast a very long shadow during sunrise or sunset? Now imagine living directly behind a huge skyscraper that will cast an even larger shadow! That is a big problem. A good example to this is the Equitable Building built in 1915. The building left the surrounding streets in a 7-acre (28,000 m²) shadow and other buildings were left in the dark by casting permanent shadows up to 21 stories high and other huge buildings had no sunlight up to their 27th floor. They had to devise regulations to prevent this and architects have to follow these rules when designing a building.

Curbed Atlanta

How tall can Skyscrapers go?

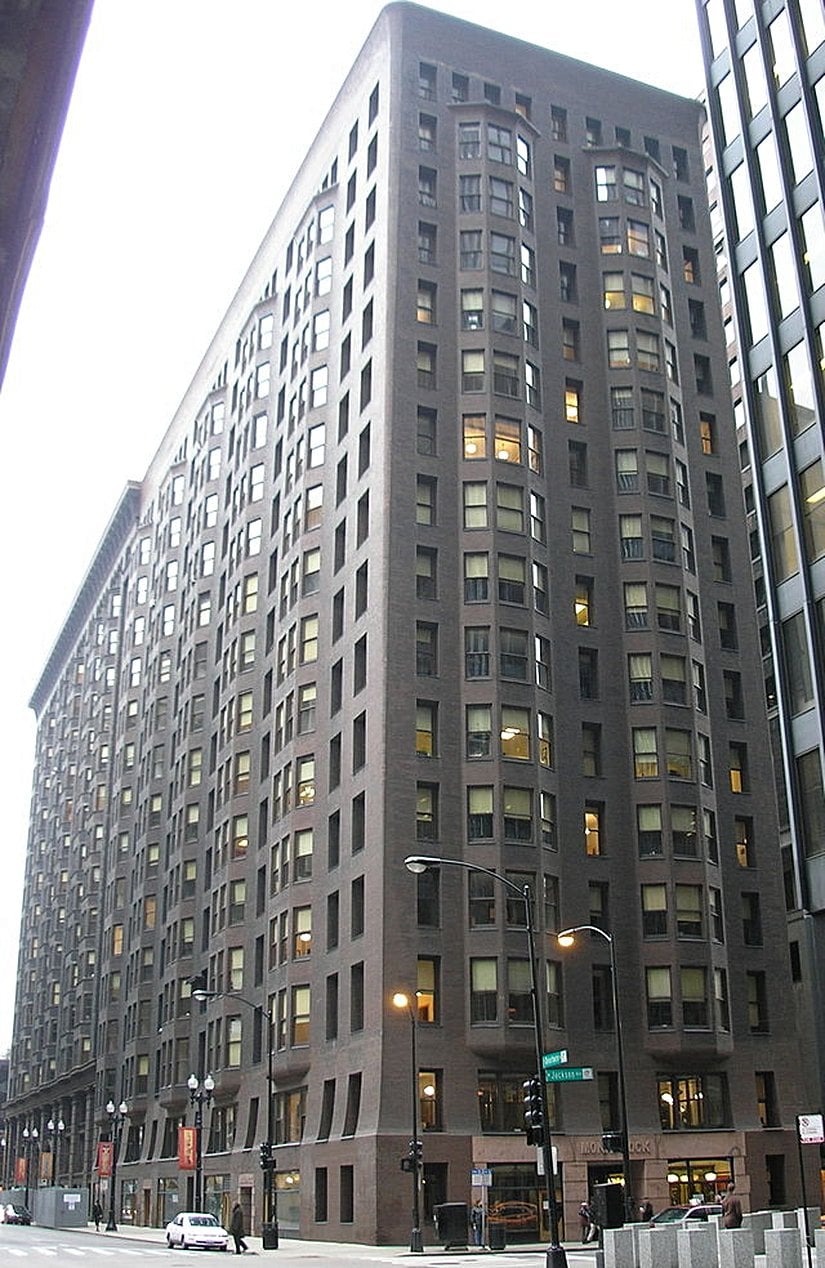

One of the important characteristics of skyscrapers is something you cannot see once it is completed. Before skyscrapers, if you wanted a tall building you would have to make the walls extremely thick to be load bearing, the Monadnock Building (1881) has walls that are 6 feet wide at the base to support its 16 stories. Why are the walls so thick at the base? Well, bricks are heavy. Every level you go up adds more and more weight to the base floors. Therefore, you need that base to be able to support the weight of all the floors above, so you expand the width which takes a lot of building materials and precious space.

Wikipedia

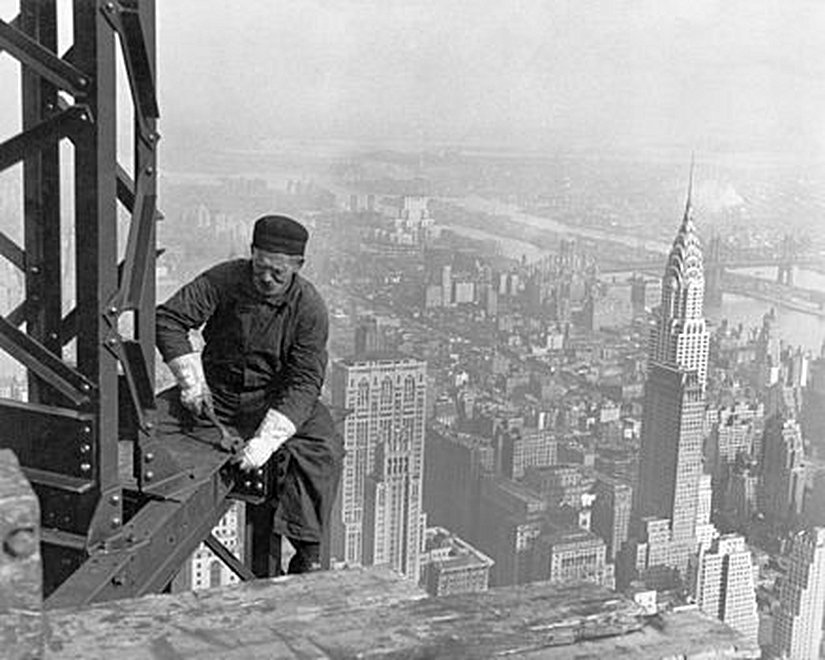

Skyscrapers were really born and left tall buildings in the dust when designers started to utilize a substructure to provide structural support for a tall building. Historically, this was done through a huge steel box with a lot of little steel boxes providing vertical and horizontal support within a building. However, as you build upwards there needs to be more support inside the skyscraper to support the weight, for example, the Empire State Building has four columns taking up space in the center of the building that also increased the material expenses for the building.

Wikipedia

Then in the early 1960s, Fazlur Rahman Khan, a Bangladeshi-American structural engineer and architect revolutionized skyscraper design by developing the tube frame that allowed skyscrapers to be more ”hollow.” Fazlur Rahman Khan defined the Tube Frame as follows:

A three dimensional space structure composed of three, four, or possibly more frames, braced frames, or shear walls, joined at or near their edges to form a vertical tube-like structural system capable of resisting lateral forces in any direction by cantilevering from the foundation.

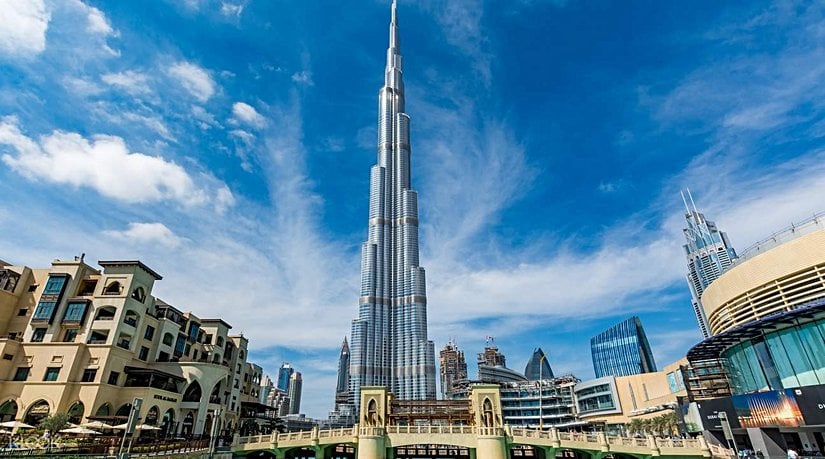

So, now Skyscrapers no longer require floors to have huge columns running through them taking up precious space on each level, are more stable structures that can resist lateral forces like wind, earthquake activity (seismic), and impacts by redirecting it to the base. There are several types of tube structures, but the one you can easily observe are the bundled tube skyscrapers, especially the current tallest building pictured at the beginning of this article, the Burj Khalifa.

Evrim Ağacı'ndan Mesaj

Neden Desteğe İhtiyacımız Var?

Aslında maddi destek istememizin nedeni çok basit: Çünkü Evrim Ağacı, bizim tek mesleğimiz, tek gelir kaynağımız. Birçoklarının aksine bizler, sosyal medyada gördüğünüz makale ve videolarımızı hobi olarak, mesleğimizden arta kalan zamanlarda yapmıyoruz. Dolayısıyla bu işi sürdürebilmek için gelir elde etmemiz gerekiyor.

Bunda elbette ki hiçbir sakınca yok; kimin, ne şartlar altında yayın yapmayı seçtiği büyük oranda bir tercih meselesi. Ne var ki biz, eğer ana mesleklerimizi icra edecek olursak (yani kendi mesleğimiz doğrultusunda bir iş sahibi olursak) Evrim Ağacı'na zaman ayıramayacağımızı, ayakta tutamayacağımızı biliyoruz. Çünkü az sonra detaylarını vereceğimiz üzere, Evrim Ağacı sosyal medyada denk geldiğiniz makale ve videolardan çok daha büyük, kapsamlı ve aşırı zaman alan bir bilim platformu projesi. Bu nedenle bizler, meslek olarak Evrim Ağacı'nı seçtik.

Eğer hem Evrim Ağacı'ndan hayatımızı idame ettirecek, mesleklerimizi bırakmayı en azından kısmen meşrulaştıracak ve mantıklı kılacak kadar bir gelir kaynağı elde edemezsek, mecburen Evrim Ağacı'nı bırakıp, kendi mesleklerimize döneceğiz. Ama bunu istemiyoruz ve bu nedenle didiniyoruz.

Destek Ol

Wikipedia

Big Picture

We tend to take these huge buildings for granted, but look at the ancient buildings like the Pyramids in awe and confusion. But when you put aside the conspiracy theories around the ancient buildings, you are hit by the fact that the modern skyscrapers are really the myriads of science and technology, with their far more advanced infrastructure and design. If you consider the skyscrapers in Japan with foundations that can roll with the earthquakes, or the megatall buildings like Burj Khalifa that is almost 6 times taller than the tallest pyramid ever found, you can appreciate modern human engineering.

There is so much more to learn about these buildings that are able to create so much space with a small land area. Utilizing land will become increasingly important as the world’s population living in urban areas will increase to an estimated 60% by 2030. There is debate on whether skyscrapers require too much energy to construct and maintain over time, but this might be counteracted with often long lives and the advancing technology in energy efficiency.

Some of the early skyscrapers like the Woolworth Building that opened in 1913 are still standing over a century later. Some architects are proposing innovative approaches; the Japanese W350 Project' wooden skyscraper announced earlier this year will be a new approach that perhaps will lead to an evolution in skyscraper construction.
