Recent advancements in thermal management technology have led to the development of thermomagnetic liquid metals (TMLMs), promising to revolutionize fire safety systems with unprecedented speed and efficiency. This innovative approach addresses pressing challenges associated with electrical fires, which have accounted for roughly 30% of all fire incidents over the past decade.
The TMLM, created by combining conventional liquid metal with magnetic nickel-manganese-indium (Ni2Mn1.4In0.6) particles, showcases extraordinary fluidity, electrical conductivity, and, most significantly, rapid temperature-sensitive responses. Researchers have reported exceptional response times as low as 1.2 seconds, making it 3.3 to 5.6 times faster than typical commercial thermal switches operating at similar temperatures. Under optimal conditions, this response time can be reduced to just 660 milliseconds.

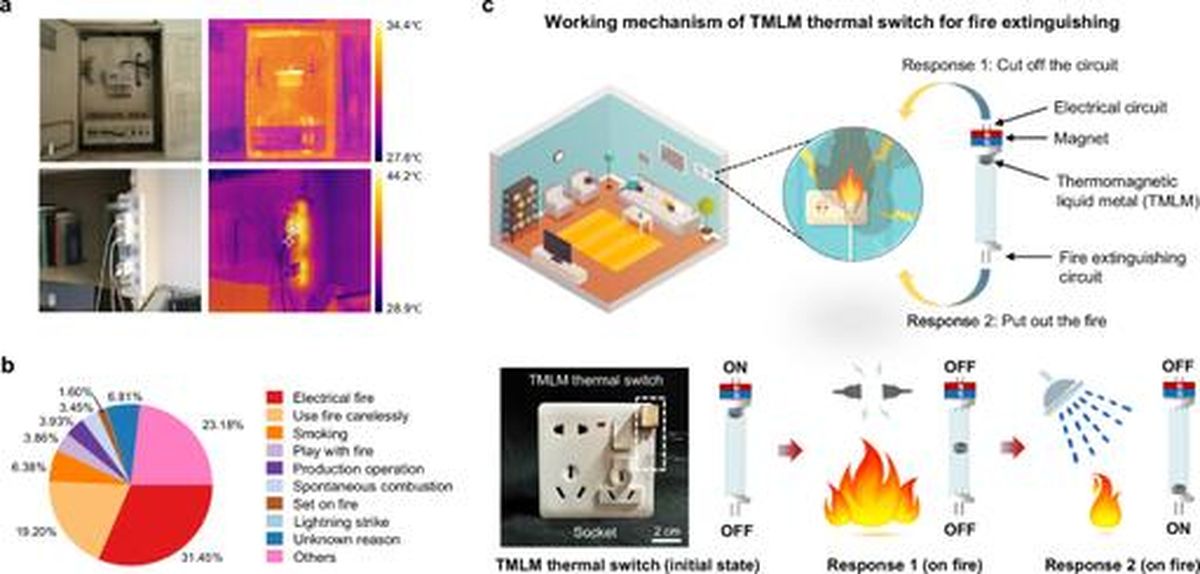

The ability of these thermal switches to activate not only upon detection of excessive heat but also to simultaneously trigger countermeasures such as fire extinguishing systems positions them as pivotal tools for enhancing safety protocols. "This approach would help prevent property damage and loss of life by addressing circuit fires more effectively," noted the authors of the study.
Localized overheating of electrical circuits threatens both lives and property, often going unnoticed until it escalates. The alarming reality is underscored by statistics showing the consistent dangers posed by electrical fires. Quick and reliable detection methods are, hence, imperative for mitigating risks associated with electrical hazards. Unfortunately, current solutions often lag, with ordinary thermal switches taking upwards of several seconds to respond to emergent situations.
By leveraging the unique properties of TMLMs—an innovative combination of properties including thermal sensitivity and fluid dynamics—this new thermal switch not only enhances response times but also provides flexibility through its bidirectional function. This allows for circuit disconnections and the activation of extinguishing systems within seconds of detecting rising temperatures.
The TMLM material itself is synthesized through rigorous methods involving the mixing of Ni2Mn1.4 and liquid metal, yielding components with effective distribution and interaction characteristics. The TMLM thermal switch operates efficiently by exploiting the composition's magnetic properties to induce transitions between ferromagnetic and paramagnetic states as temperatures change.
Further testing revealed performance metrics confirming the TMLM switch's feasibility for real-world applications. The findings indicated recovery times substantially faster than those of commercially available thermal switches, topping off at 53.6 seconds. Impressively, the unit cost of producing these advanced thermal switches remains competitive, estimated at approximately 1.016 USD, igniting prospects for wide-scale commercialization.
Pioneering practical applications, experimental setups demonstrate the functioning of the TMLM switch under various heating conditions, validating its efficacy and versatility. The switches have been tested under contact convection heating and non-contact laser heating methods, confirming their adaptability to different thermal management needs.
Given the potential for significant advancements in fire safety and equipment protection, the TMLM thermal switch provides the capacity for immediate action against heating events. Enhanced reactivity not only enables quicker disconnection of electrical circuits but also expedites the initiation of fire suppression measures, substantially reducing risks associated with electrical fires.
Looking beyond fire safety, the TMLM's properties may pave the way for novel applications across various fields, promising groundbreaking developments well beyond traditional thermal switches. This research marks the beginning of what could be pivotal technologies for safety devices.
