Researchers have made a significant breakthrough in the field of ferroelectric materials by observing self-assembled two-order radial vortices in high-density bismuth ferrite (BiFeO3) nanostructures. This discovery, detailed in a recent study, has promising implications for next-generation information carriers and multi-state memory devices.
The study highlights that the two-order radial vortex features a distinctive doughnut-like out-of-plane polarization distribution coupled with a four-quadrant in-plane distribution, characterized by a topological charge of Q = 0. By systematically controlling the dimensions of BiFeO3 nanostructures, the researchers demonstrated a size-dependent stabilization of various topological states, ranging from elementary one-order to intricate three-order radial vortices.

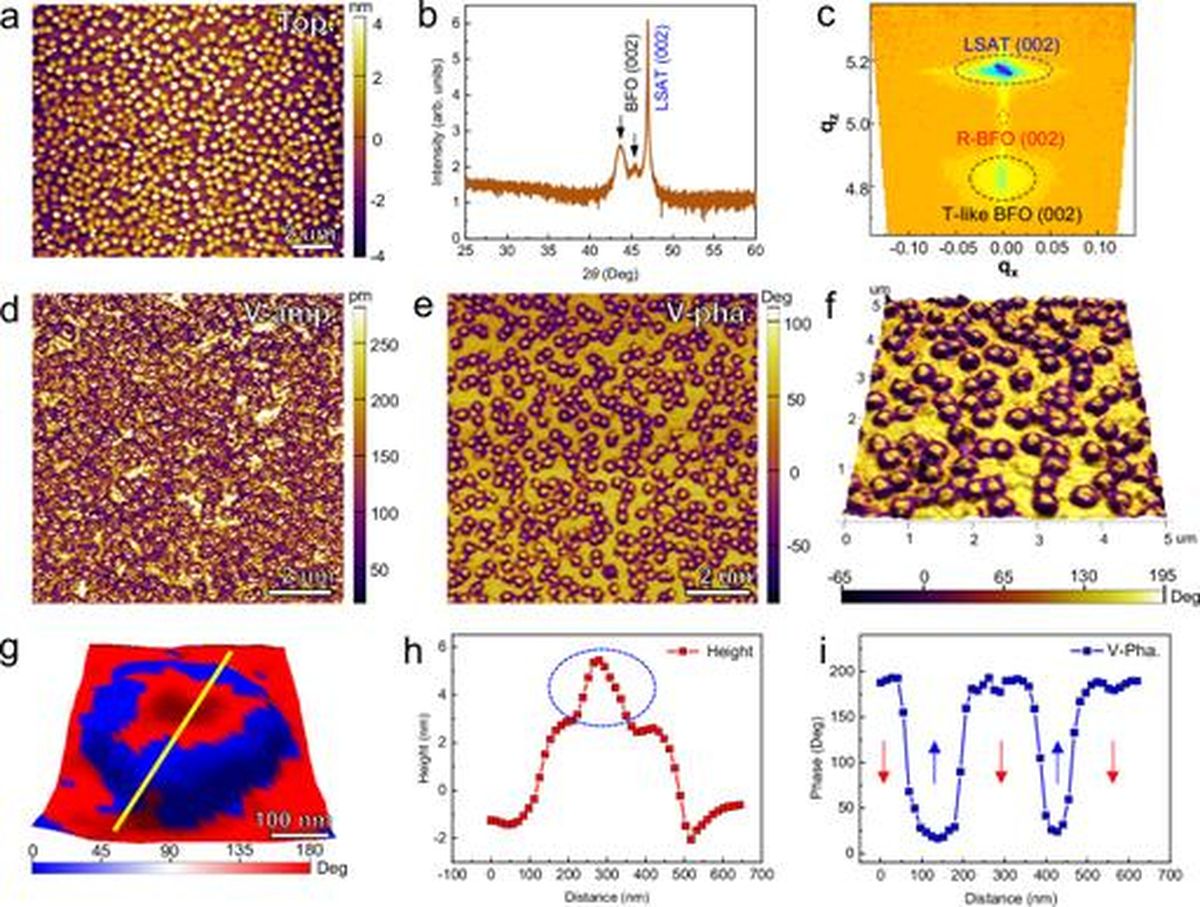

The experimental setup involved growing 14.5 nm thick BiFeO3 films on [001]-oriented (LaAlO3)0.29(SrTa1/2Al1/2O3)0.71 (LSAT) substrates, achieving an average lateral size of about 350 nm for the nanoislands. Notably, the coexistence of rhombohedral and tetragonal-like BiFeO3 was stabilized under a significant 2.4% compressive strain imposed by the LSAT substrate.
In terms of electrical properties, researchers observed that the coercive field of the nano-island core was calculated to be 4500 kV/cm, greater than the values observed in its periphery (2264 kV/cm) and the surrounding matrix (3500 kV/cm). These measurements highlight the varying stability of polarization within different regions of the nanostructures.
The team also explored how the topological transitions could be induced by external electric fields. They identified three types of transitions under voltage bias: a transformation from a three-order radial vortex to a non-topological domain and back to a two-order radial vortex; a pressurizing transition from a two-order radial vortex to a non-topological domain and back to a two-order radial vortex; and a change from a two-order radial vortex to a non-topological domain and finally to a one-order radial vortex.
As the authors of the article elaborated, "the spontaneous occurrence of the polar two-order radial vortex in the as-grown BFO nanostructures implies that it is the favorable state stabilized by boundary condition engineering." This stabilization indicates that existing boundary conditions during film synthesis lead to complex topological configurations, paving the way for further exploration of ferroelectric materials.
This study not only adds to the understanding of topological structures in ferroelectrics but also opens avenues for designing advanced memory devices that could exploit these unique topological features. The ability to modulate and stabilize varied topological states under external electric fields may lead to compact, efficient memory systems capable of multi-state information storage.
This discovery reinforces the importance of engineering boundary conditions to influence material states and behaviors. As ongoing research continues to unveil the potential of topological phenomena in materials science, the implications for future technologies remain significant.
