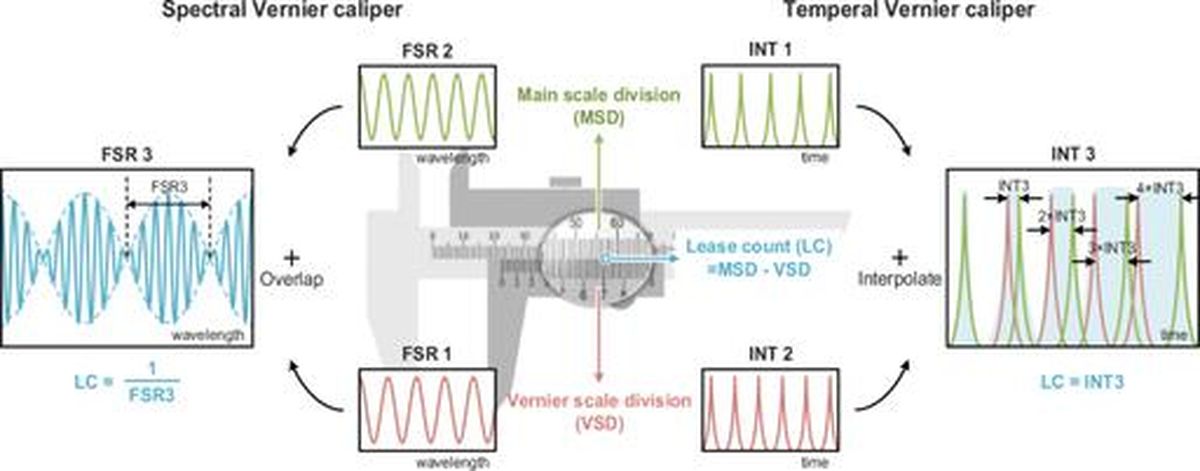

In an exciting advancement for high-speed information technology, researchers have introduced a groundbreaking temporal point-by-point arbitrary waveform synthesizer capable of sampling rates exceeding 1 TSa/s. This innovative system leverages an optical temporal Vernier caliper, significantly enhancing the efficiency of high-speed waveform generation compared to traditional methods.
The synthesis of high-speed arbitrary waveforms is crucial for numerous applications including radar, lidar, and optical communications. In conventional systems, the performance of arbitrary waveform generators (AWGs) is constrained by the bandwidth of electronic components, limiting sampling rates to a few hundred gigasamples per second (GSa/s). The newly proposed system, however, opens the door to unprecedented speeds by combining a mode-locked laser (MLL) with a photonic fiber loop, utilizing slight detuning to control the sampling rate.
Designed to surpass the traditional limitations of electronic synthesizers, the system showcases tunable sampling rates of up to 1 TSa/s and supports a remarkable memory depth of 10.4 kilo-points. As detailed in the research published in Nature Communications, the team successfully generated various complex waveforms, including those for high-speed wireless communications and linearly chirped microwave signals intended for high-resolution multi-target detection.
The experimental setup begins with a mode-locked laser providing an optical pulse train with a repetition rate of 20 MHz, which is subsequently reduced to 5 MHz by an acousto-optic modulator (AOM1). This pulse train is injected into the fiber loop—40 meters long—where both the loop length and the round-trip time (Tr) can be adjusted, allowing for finely controlled waveform synthesis through the Vernier effect.
According to the researchers, "The synthesizer demonstrates generating waveforms with ultra-high, tunable sampling speed up to 1 TSa/s, an order of magnitude higher than existing electronic counterparts.” The ability to achieve such high performance stems from the novel methods used to manipulate the time periods of pulses in the synthesized waveform, enabling massive point-by-point control without the drawbacks of high-speed modulation.
Testing the capabilities of their system, the team generated various waveform types consistent with communication standards such as on-off keying (OOK), pulse amplitude modulation (PAM-4), and quadrature phase-shift keying (QPSK) signals, achieving sampling points of up to 10.4 kpts. The synthesis of linearly chirped microwave waveforms allows for accurate detection in radar systems, reinforcing the versatile applications of the synthesizer.
The experimental findings reveal that arbitrary waveforms with tunable sampling rates ranging from 5 to 1 TSa/s have been successfully synthesized, affirming high fidelity with an average root mean square error (RMSE) of just 0.0409—showing nearly seven bits of effective vertical resolution. The use of advanced components such as a tunable optical filter and a dispersion compensating fiber within the fiber loop further ensures the integrity and quality of the synthesized signals.
As indicated by the authors, this technology not only enhances high-speed arbitrary waveform generation but also holds potential applications across various segments including medical imaging, LiDAR, and optical computing. These areas could benefit significantly from the improved efficiency in signal generation, processing speed, and overall data encoding operations.
Furthermore, by adopting photonic integration and optimizing the system for specific applications, such as high-speed AWGs designed for microwave frequencies, the proposed temporal Vernier caliper stands as a viable solution for next-generation communication systems. In the future, integrating such technology into compact systems may drive significant advancements in both wireless communications and precision measurement technologies.
In conclusion, the introduction of a temporal point-by-point arbitrary waveform synthesizer amplifies not only the pace at which waveforms can be generated but also the complexity and variation attainable in modern photonic applications. With its order of magnitude improvement over traditional systems, it symbolizes a new frontier in waveform engineering, promising myriad applications across our increasingly interconnected world.
