A breakthrough in photon generation technology paves the way for new advances in quantum optics and photonic integrated circuits. Researchers have unveiled a novel device architecture that facilitates spontaneous parametric down-conversion (SPDC) without the need for the conventional practice of periodic poling, a method that has posed limitations on the scalability and efficiency of photon sources.
The architecture, highlighted in a recent paper published on March 24, 2025, enables the generation of photons over a wide range of frequencies. This advancement is crucial for applications in quantum communication, computation, and metrology, making the new design particularly noteworthy for researchers in the field.
The device employs mode conversion techniques and modal phase-matching, allowing SPDC in materials like 4H Silicon Carbide on-insulator and thin-film Lithium Niobate on-insulator—platforms where such photon generation was previously unfeasible. By utilizing these materials, the research overcomes the conventional necessity of periodic poling, thereby simplifying the photon source fabrication process.
As explained in the study, traditional SPDC processes rely heavily on quasi-phase-matching techniques, which require intricate periodic structures in nonlinear materials. Unfortunately, these structures often lead to increased fabrication complexity and the introduction of errors. The novel architecture presented not only eliminates the need for such periodic poling but also enhances the operational flexibility of the photon generation process.

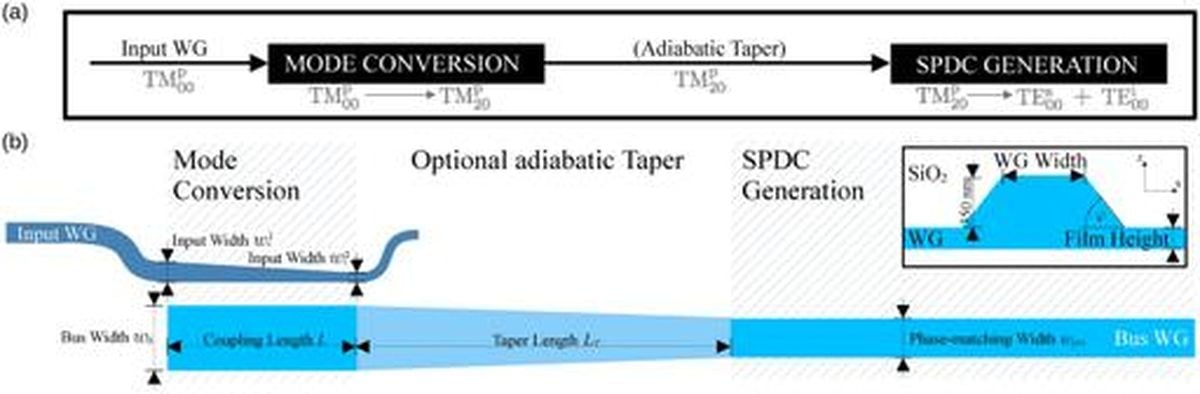

Researchers utilized adiabatic directional couplers to convert TM00 modes into TM20 modes—a technical requirement for effective down-conversion. The conversions achieved portrayed impressive efficiency metrics, with the studies showing conversion efficiencies of approximately 99% for 4H Silicon Carbide and 96% for Lithium Niobate.
The authors of the article stated, "The proposed device architecture enables SPDC of a broad range of frequencies in conventional ridge WGs without the need for periodic poling," underscoring the significance of this advance. Managing to achieve such efficiency while simplifying the fabrication process opens up new avenues for integrated quantum photonics.
Moreover, the architecture's ability to maintain operational flexibility despite potential fabrication errors is crucial. The researchers modeled the impacts of deviations during the fabrication process using simulations that confirmed the robustness of the device’s design. "Simulations capture the effects of fabrication errors on the phase-matching conditions, illustrating the robustness of the design and its operational flexibility," wrote the authors of the article. This finding highlights the reliability of the new approach under real-world manufacturing conditions.
The implications of this research extend well beyond mere photon generation. In practical terms, the new design could play a significant role in the development of quantum communication protocols and complex quantum computing systems. Researchers believe that utilizing such a device could lead to more accessible and scalable quantum photonics technologies.
Looking ahead, the proposed device architecture not only facilitates frequency-agile SPDC but also opens the door to new techniques for generating entangled photons critically required for various quantum applications. This will further support advancements in spectroscopy, nonlinear interferometry, and applications relying on the interference of single photons.
In conclusion, the research presents a momentous step forward in the realm of photon generation and quantum optics. By showcasing a design that eliminates the intrinsic limitations of periodic poling, it fosters an environment ripe for innovation and development, enabling the integration of quantum technologies into mainstream communication and computational architecture.
