The relationship between high-speed trains and the accurate detection of arc faults is becoming increasingly critical as rail technology advances. Researchers have developed a new mathematical model for pantograph-catenary arcs, which play a pivotal role in the safe operation of high-speed trains. This innovative model integrates the effects of airflow velocity and arc current, factors often overlooked in traditional methods, leading to enhanced accuracy in fault diagnosis.
This comprehensive study, published in Scientific Reports, introduces the concept of port impedance, which simplifies the process of identifying arc faults, transforming it into a linearly separable problem. The results indicate that this new model not only improves detection capabilities but also achieves an impressive accuracy rate of up to 99% when paired with support vector machine (SVM) classification techniques.

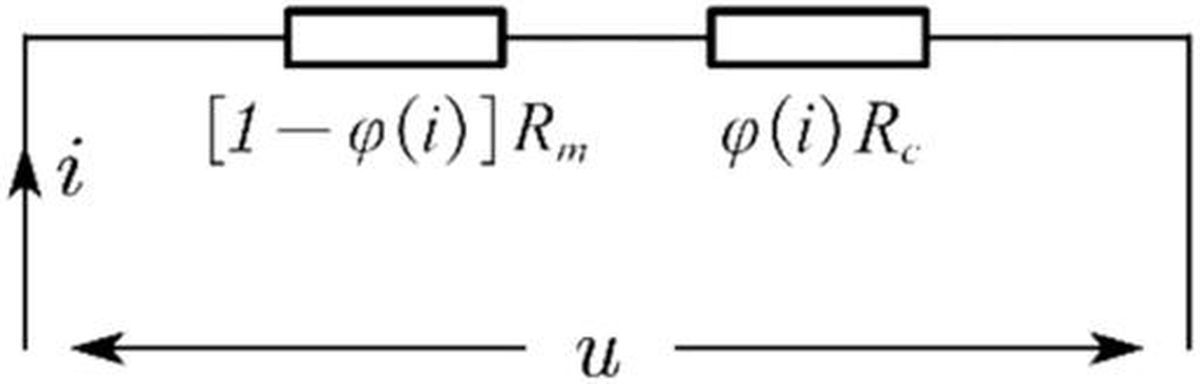

The research highlights the significance of high-speed airflow on pantograph-catenary arcs, addressing the deficiencies of earlier models that did not adequately consider this variable. With the increasing operational speeds of trains—up to 500 km/h—the impact of airflow on arc behavior is crucial. Traditional models, like the Cassie and Mayr models, assumed constant conditions that do not reflect real-world scenarios, leading to potential inaccuracies in fault detection. By contrast, the new model developed by Li et al. firmly links airflow dynamics to voltage gradient and dissipative power, enhancing the understanding of arc characteristics.
To validate their findings, researchers utilized PSCAD software for simulations alongside experimental setups that replicated real-world conditions. The correlation between simulated and experimental data showed a notable Spearman correlation coefficient of 0.816 at an airflow speed of 225.7 km/h, indicating the robustness of the new mathematical framework.
In traditional diagnostic approaches, the identification of arc faults relying on voltage and current signals posed significant challenges due to the concealed nature of arc signals. High-dimensional feature extraction methods were often required, complicating the recognition of faults. The introduction of port impedance facilitates a shift away from these intricate methods, allowing for easy and efficient arc identification with minimal preprocessing.
Under the hood, the new model operates by transforming the arc fault diagnosis into a linear recognition problem, vastly simplifying the computational load and algorithmic complexity. This not only improves the speed of diagnostics but also enhances the reliability of results, essential in a field where safety is paramount.
Experimental results further corroborated the theoretical model, demonstrating how variations in airflow impacted arc voltage amplitudes. As airflow speed increases, arcs exhibit a higher voltage amplitude according to the established mathematical relations. This trend affirms the need for real-time adaptations in monitoring systems deployed on high-speed railways.
The feasibility of employing port impedance in arc fault diagnosis is underscored by the success of the SVM model, which achieved high accuracy without necessitating complex feature extraction or parameter optimization that typifies conventional methods. The findings open new avenues for research and development, encouraging further exploration of various environmental factors influencing arc behavior. The potential to integrate this model with existing railway safety systems presents a substantial advancement in electrical engineering and railway safety.
In conclusion, the research led by Li, Shu, and Du emphasizes the importance of adapting mathematical models to account for the physical realities experienced in high-speed train operations. The developments in modeling and fault diagnosis not only pave the way for improved safety protocols but also establish a new paradigm in the understanding of pantograph-catenary systems. As railway speeds continue to soar, so too does the critical need for effective monitoring and diagnosis systems to ensure safe travel for passengers.
