A novel biosensor designed using an open D-channel photonic crystal fiber (PCF) is paving the way for label-free cancer detection with unprecedented sensitivity. Developed by researchers at the Nano-photonics and Optoelectronics Research Laboratory, this innovative biosensor utilizes a unique combination of gold (Au) and titanium dioxide (TiO2) layers to detect cancer cells accurately.
Published on March 24, 2025, the study outlines how this PCF biosensor shows potential for superior performance in identifying cancer cells compared to traditional methods. The design effectively reduces the gap between the fiber core and the plasmonic layer, enhancing signal detection.
The biosensor operates effectively across a refractive index (RI) range of 1.25 to 1.43, achieving a remarkable peak spectral sensitivity of 47,000 nm/RIU during testing. It specifically focuses on six cancer cell types, including MCF-7 and HeLa cells, with the highest spectral sensitivity recorded at 5,214.285 nm/RIU and an impressive amplitude sensitivity of -1,481.1 RIU-1. These metrics demonstrate the device's ability to detect minor changes in RI that are indicative of disease.
As cancer research continues to evolve, the method of biosensing is becoming increasingly vital. Traditional techniques like imaging and biopsies often involve complex procedures that may delay diagnoses. In contrast, biosensors have emerged as essential tools that can detect specific molecules indicative of cancer, leading to quicker diagnosis and potentially better outcomes.
Various biosensors have been developed over the years, categorized as acoustic, optical, and thermal. Optical biosensors, particularly those relying on surface plasmon resonance (SPR), have gained traction for their ability to monitor real-time changes in biomolecules. However, many current optical sensors rely on labels, increasing costs and complicating procedures.
The newly designed D-channel biosensor promotes a label-free detection method, negating the need for markers that may interfere with the biochemical processes being monitored. This reduction in complexity is crucial, especially in clinical settings, where time and accuracy are paramount.

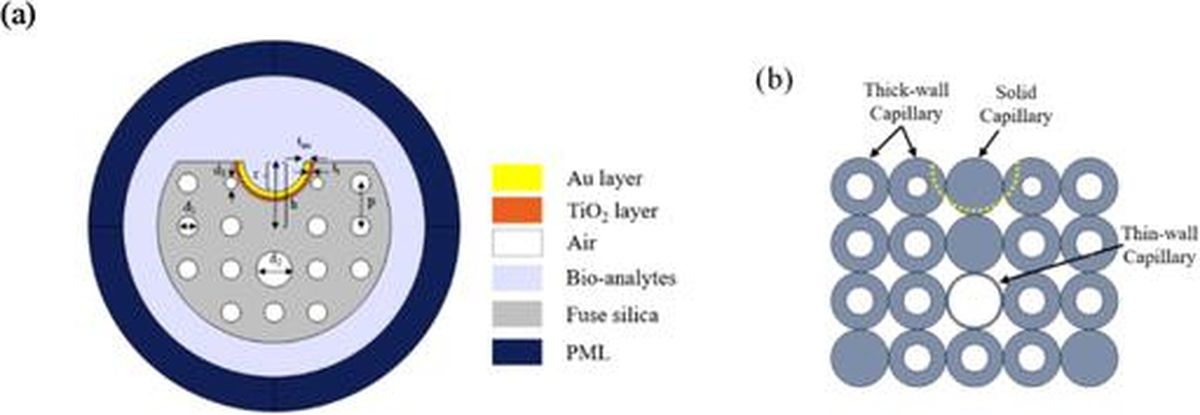

The incorporation of titanium dioxide (TiO2) plays a vital role in the adhesion of the gold layer to the silica substrate, enhancing structural stability and the overall performance of the sensor. This engineering not only improves the interaction between the sensor and analytes but also contributes to a simpler fabrication process.
Using finite element modeling through COMSOL Multiphysics, the researchers optimized various parameters to achieve sensitivity levels that outperform existing biosensing technologies significantly. The innovative design includes specific hole sizes within the PCF, allowing for better light confinement and enhancing the sensitivity of the detection process.
Results from testing show that, among the different cancer cell types, HeLa cells displayed a maximum resolution of 1.19 × 10-5 RIU and a figure of merit (FOM) of 350 RIU-1. In contrast, MCF-7 cells exhibited the highest spectral sensitivity, further underscoring the biosensor's utility in diverse cancer detection scenarios.
According to the researchers, this biosensor not only addresses challenges posed by environmental factors impacting traditional cancer detection methods but also demonstrates consistency across varying biological samples. "Achieving consistent sensitivity and specificity across different cancer cell types is challenging due to the variable SPR responses from different environments," noted the authors of the article.
As the discussion around improving cancer detection technologies continues, the implications of this biosensor extend beyond academic achievement. This advancement in optical technology may help reduce the burden on healthcare resources by enabling earlier and more accurate diagnosis, ultimately leading to better patient outcomes.
The researchers concluded that their D-channel PCF-based SPR biosensor could have a critical impact on future cancer diagnostics, advocating for further research into its applications across a wider range of cancer types and conditions. As healthcare evolves, these innovative sensors could play an integral role in the regular monitoring and early detection of malignancies, marking an important step forward in battling cancer.
